| Brand Name: | GWELL |
| Model Number: | GWS single screw |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 90 days after all the technical information is confirmed |
| Payment Terms: | L/C, T/T |

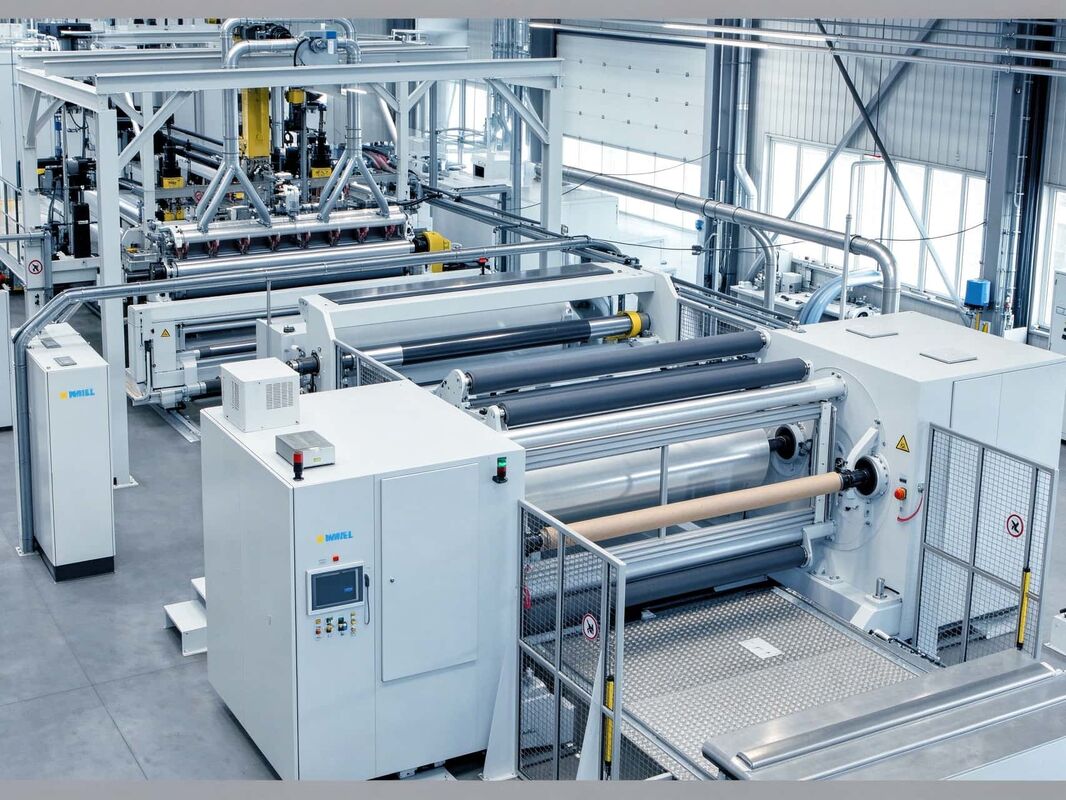

GWELL EVA Cast Film Extrusion Line for PV Solar Encapsulant Film
GWELL EVA Cast Film Extrusion Line is purpose-built to manufacture photovoltaic encapsulant film for solar modules. Featuring constant-temperature cooling and precise thickness control, it effectively prevents premature cross-linking of EVA resin. Equipped with anti-stick calender rolls and our patented low-tension winder, the line operates stably at a running speed of 16 m/min. The integrated PLC control and real-time online monitoring produce uniform, low-shrinkage EVA encapsulation film for long-life photovoltaic module encapsulation.
Parameter
Main Technical Specification
| Model | GWS160 | GWS180 | GWS 200 |
| Material | EVA | EVA | EVA |
| Width(mm) | 3000 | 3000 | 3000 |
| Thickness(mm) | 0.2-1 | 0.2-1 | 0.2-1 |
| Capacity(kg/h) | 8000 | 1000 | 1200 |
| Liner speed(m/min) | 12 | 15 | 16 |
1. EVA-Specific Extrusion System Fitted with a high-torque gearbox and purpose-built single screw. Circulating water cooling maintains temperature accuracy within ±1℃ between screw and barrel, preventing incomplete plasticization and premature cross-linking of EVA materials.
2. Precise Thickness Control A screen changer filters impurities to enable uninterrupted continuous production. The melt pump stabilizes pressure fluctuation at ±0.1MPa. Optional manual or automatic T-die works with an online thickness scanner to realize closed-loop adjustment, producing film with highly uniform thickness.
3. Anti-Stick Calendering & Low Shrinkage Forming Double-sided embossing rollers stop film adhesion. Accurate roller temperature control, combined with cooling rolls and a stress-relief bed, fully sets the film structure. It controls film shrinkage within 3% and eliminates finished film warpage.
4. Stable Haul-off & Precision Cutting Independent servo haul-off unit adopts wear-resistant nitrile rubber rollers to safeguard the film surface. The precision cutter provides clean, burr-free film edges.
5. Patented Low-Tension Winder for High Productivity Our patented low-tension winding system produces wrinkle-free rolls and reduces internal film stress. The auto relaxation cutting function cuts down raw material waste.
6. Full-Line Intelligent Control The PLC+HMI system enables simple fully automatic operation. Real-time online quality monitoring guarantees consistent batch-to-batch quality of photovoltaic EVA encapsulant film.
II. This GWELL EVA cast film extrusion line is purpose-built to produce photovoltaic EVA encapsulant film. The finished encapsulant films serve a wide range of application scenarios as listed below:
1. Lamination & encapsulation for monocrystalline and polycrystalline silicon PV modules
2. Encapsulation of BIPV (Building Integrated Photovoltaic) modules
3. Residential distributed small photovoltaic power modules
4. Encapsulation for solar energy storage battery components
5. Optical adhesive layers for laminated photovoltaic glass
6. Cell encapsulation for off-grid solar systems, outdoor solar power equipment and solar street lights
Automatic Feeding, Dehumidification and Drying → Screw Melting and Plasticization → T-Die Extrusion → Calendering, Casting, Cooling and Forming → Haul-off and Deviation Correction → Fixed-Length Cutting / Winding → Finished Product Collection
IV.Customer Directory:
GWELL delivers comprehensive global pre-sales and after-sales technical support for your photovoltaic encapsulant film production line project.
1. Customized Production Solutions Our professional engineering team provides one-on-one consultation and tailor-made production line configuration schemes based on your production targets, workshop conditions and budget requirements.
2. On-Site Factory Inspection Customers are warmly invited to visit our manufacturing workshop for factory tours and witness live equipment test runs on-site.
3. Rigorous Pre-shipment Testing Each complete production line goes through full-function, comprehensive testing prior to delivery, to minimize potential operational faults once the equipment arrives at your factory.
4. Global After-sales Technical Support We offer 24/7 remote technical assistance, plus overseas on-site commissioning, installation and training services worldwide.
This GWELL EVA cast film extrusion line is tailor-made to manufacture photovoltaic encapsulant film, built for stable performance and high automation suited for India’s harsh solar operating conditions.The resulting EVA encapsulant film delivers strong adhesion, excellent light transmittance and superior weather resistance. It firmly bonds PV glass, solar cells and backsheet together, shielding internal solar cells against moisture ingress, oxidation and mechanical damage, and extending the long-term service life of photovoltaic modules for Indian rooftop, utility-scale and agricultural solar projects.
Contact Our Extrusion Experts Today!
